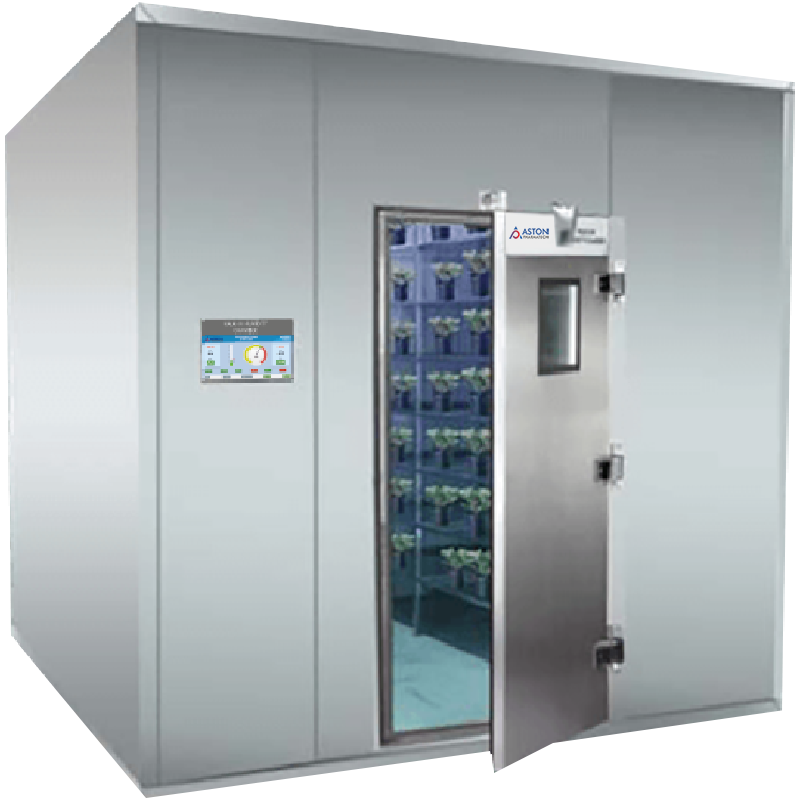

Walk-In Humidity Chamber

Technical Specifications

• Double walled with 80mm PUF insulated modular panels with easy on-site assembly
• SS 304 Interior & Exterior either SS 304 or Powder Coated G.I.
• Stainless Steel Trays
• Observation window - 300 x 300 mm
• Illuminated working area

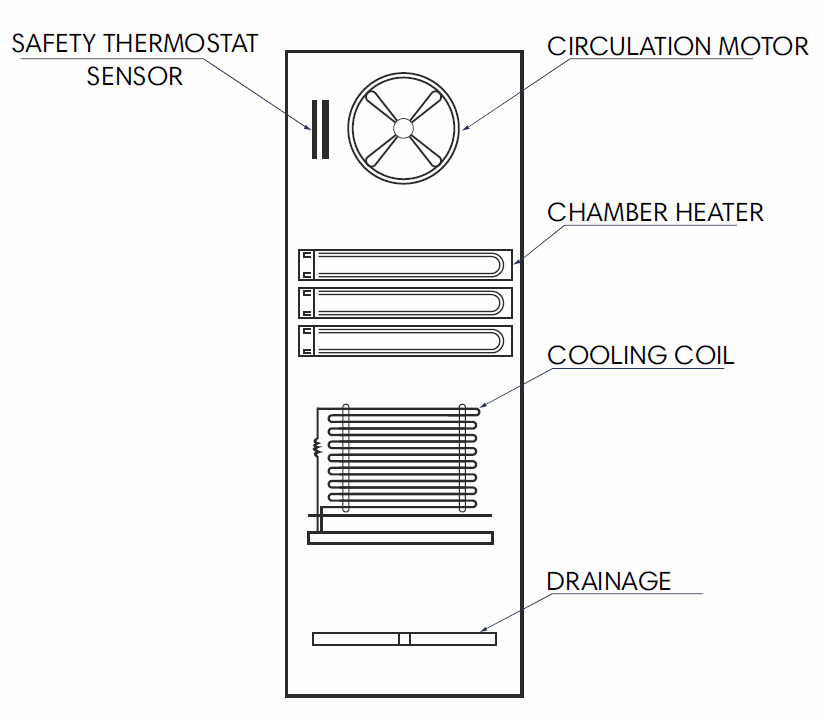

• U-Shaped SS tubular heaters
• Flooring of Linoleum carpet
• Forced air circulation for uniform Temperature & Relative Humidity
• Non Condensing steam injection type humidity system with standby heater
• CFC free cooling system consisting of hermetically sealed compressor coupled with evaporation coils & condenser
• System is made up of split type condenser unit in wellventilated area to avoid throw of hot air in the room

• Complete Operations driven through PLC
• High speed Ethernet based communication
• User interface through SCADA / 4” or 7” HMI/10.1” IPC
• Highly accurate Temperature and RH Transmitters for measuring process parameters
• Low and High safety cut-off provided

• Audio/Visual alarms for deviations
• Chamber door can be integrated with access control system to prevent from unauthorized access
• Chamber Door equipped with heater to prevent from moisture
• Significant low power consumption
